Model NO.: ML002
Stamping Expanded Metal Mesh Category: Expanded Metal Mesh
Galvanized Surface Treatment: Hot-galvanize
Hot-galvanize Technique: Line Annealing
Specifications: Mesh
Product: Expanded Metal Lath
Finish: Hot Dipped Galvanized
Mesh Type: Diamond
Thickness: 0.5mm-8mm
Swd: 2.5mm-50mm
Lwd: 4.5mm-100mm
Wire Stems Width: 0.5mm-8mm
Width: 0.5m-2m
Length: 1m-10m
Trademark: XJY
Transport Package: Plastic Film Then Iron Pallet
Origin: Shangdong, China
HS Code: 73145000
galvanized plaster expanded metal mesh with factory price Product Information
1.Material :hot dipped galvanized plateÂ
2.Mesh Type:diamondÂ
3.Thickness:0.5mm-8mm
4.SWD :2.5mm-50mm
5.LWD:4.5mm-100mm
6.Wire Sterm Width:0.5mm-8mm
7.Width:0.5m-2m
8.Length:1m-10m
9.Application:construction ,civil building .
Product SpecificationÂ
| Thickness | SWD | LWD | Wire Stems Width | Width | Length | Weight |
| (mm) | (mm) | (mm) | (mm) | (m) | (m) | (kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 60 | 3.8 | 2 | 4 | 5 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4 | 60 | 120 | 4 | 2 | 7.5 | 4 |
| 4 | 80 | 180 | 4 | 2 | 10 | 3 |
| 4 | 100 | 200 | 4 | 2 | 12 | 2.5 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 5 | 75 | 150 | 5 | 2 | 10 | 3 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |
Product Show caseÂ
You will get our best offer within 24 hours ,welcome all your inquires ,thanks !

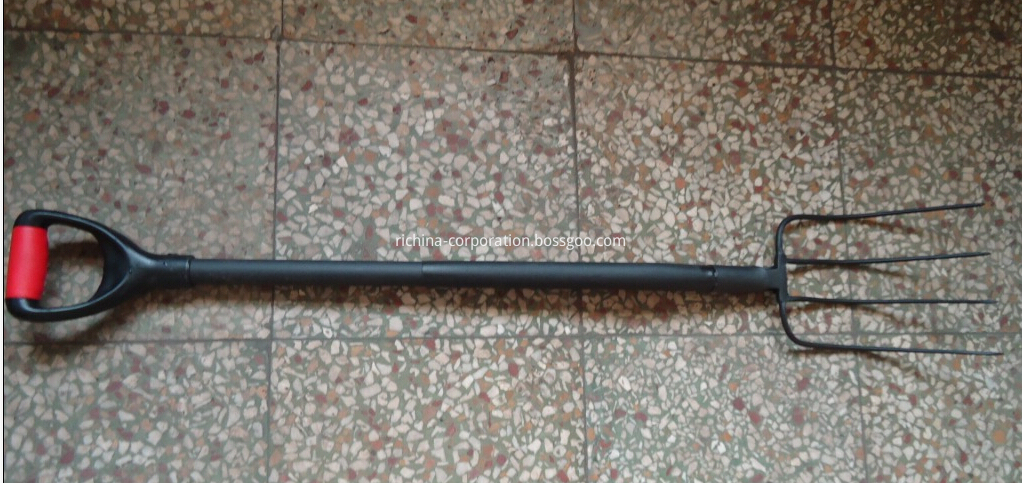

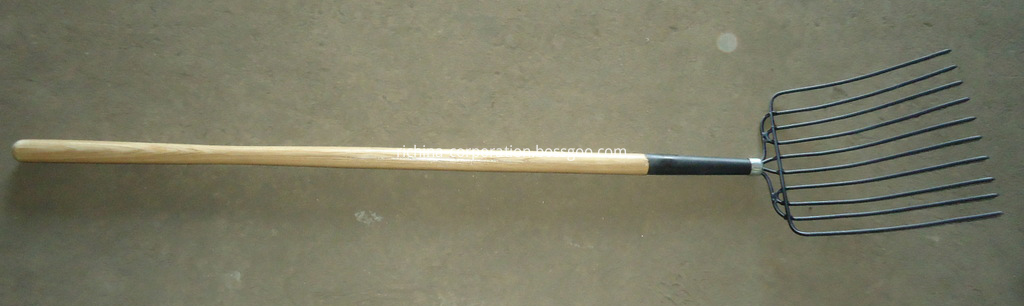

Richina Garden Forks are designed to reduce the back strain and make the garden work lighter. Our Forks are made of durable materials: steel or special durable plastic. Steel Digging fork for cultivationg the soil, Mulch Fork is perfect for moving large amounts of lightweight material like garden mulch and bark in a short time.
